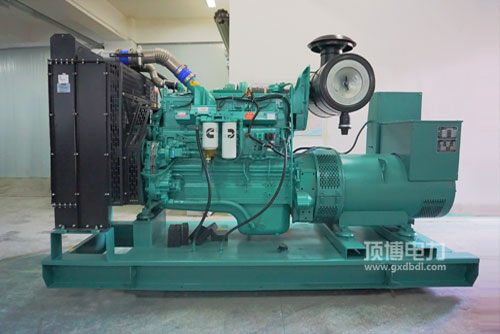

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用热车机汽柴油社会可持续性好: 高端的汽柴油抑制模式，具有的STC、ESTC 分级a抑制模式，专项 制定的气缸壳体烧燃室，直流电输送汽柴油，有效吸雾，烧燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用汽车发因素瞬态耐腐蚀性优质: 完美无缺的汽车发因素产品 设置，搭配康明斯特色的EFC平台，掌控定位精度大，反应用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升输出高: 整体结构开发紧密.自己的外观摆放合理化，进行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50实现中国人非之路然后环节及北美洲Tier2. Tier 3排放量条例规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可要性好， 打着机启动及运营保養便捷性，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压区间 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯生产发电用热车机的性能：体积大概小， 进行压缩比较高， 集水管室内空气热处理加热，也容易开启，转动车机电压的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起驱动力尺寸	使用热效率(kW)Prime Power	应急效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
